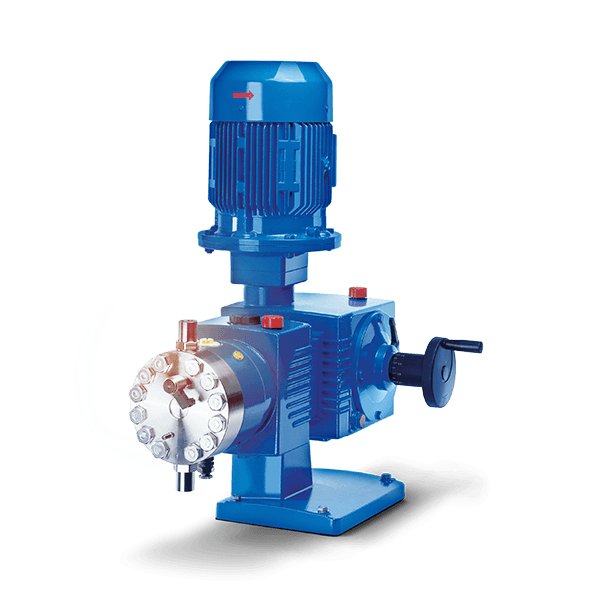

LEWA ecoflow diaphragm metering pump

LEWA ecoflow ®
diaphragm metering pump

Its sophisticated modular system makes the ecoflow diaphragm metering pump the correct industrial pump for almost all applications.

Whether toxic, abrasive or sensitive liquids – the ecoflow diaphragm metering pump is the first choice for almost all fluids. Our experts design drive units and pump heads for you individually. The ecoflow series implements a flow rate of up to 19 m³/h per pump head and a discharge pressure of up to 1200 bar.

LEWA ecoflow®
The all-around talent for virtually all industries.

No matter if offshore in rough seas or in production in pharmaceutical cleanrooms – the ecoflow diaphragm metering pump has established itself worldwide in a range of different industries as a reliable and economical metering pump.

It features an exact metering rate and enormous durability in extreme operating conditions. Low life cycle costs and high energy efficiency complete the profile of a true all-around talent.

Thanks to the tried-and-tested modular system, ecoflow diaphragm metering pumps can be configured with various pump heads and drives for almost all applications. Here, we set technological and qualitative standards: Each ecoflow diaphragm metering pump is equipped with the patented DPS diaphragm protection system and produced in Germany.

LEWA ecoflow diaphragm metering pump

Good reasons for a LEWA ecoflow®

The LEWA ecoflow is a hydraulically actuated diaphragm metering pump that provides numerous advantages over comparable pumps.

Suction capability

Unique suction capacity

The LEWA ecoflow diaphragm metering pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar abs., it not only provides a wide array of safe installation options. The operating costs for the entire system can also be lower than with other pumps.


Safe pumps

Absolutely safe startup

Starting up the metering pump is safe and easy: When the pump is not operating, a spring pulls the diaphragm into a safe position at all times. This allows us to guarantee maximum safety when starting up your system and a long service life of the diaphragm.


Long lifetime

Low maintenance costs and a long service life

The ecoflow series features a long service life for all components and particularly low maintenance and operating costs. If the regular maintenance intervals are maintained, our diaphragm pumps can operate for 40 years or more in your production process.


API Standard

API 675 standard

The ecoflow series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. It includes all definitions for a diaphragm metering pump in industrial use in terms of its design, construction, performance and acceptance test.


Safety manometre

Safety and reliability in extreme operating states

For us, safety and reliability comes first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms - not only when excess primary pressure is present, but also when the pressure or suction line is closed.


Creating fluid solutions

Suitable for virtually all fluids

The ecoflow series is suitable for almost all liquids thanks to its flexible design. Whether they are dangerous, toxic, abrasive, viscous, environmentally harmful or sensitive fluids, the user-specific configuration always gives you the correct diaphragm metering pump.

Diaphragm

Patented sandwich diaphragm

Our patented LEWA sandwich diaphragm is not only extremely durable, but also well-protected. The LEWA DPS diaphragm protection system and a diaphragm monitoring system allow us to ensure that the diaphragm does not tear during operation and that the pump fluid is not contaminated.

Pressure valve

Integrated pressure relief valve

A pressure relief valve in the hydraulic part of the diaphragm pump prevents potential overload situations in operation. This valve is individually adjustable and can therefore be adapted to different operating situations.


High energy efficiency

LEWA diaphragm pumps achieve the highest efficiency of all pump technologies. Our ecoflow series also combines high efficiency with low energy consumption.

Hermetically sealed

Diaphragm pumps work without dynamic seals in the process fluid area. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.

Worldwide standards

When designing pumps, we adhere to globally valid standards such as VDMA 24284, 24286‐10 and FDA guidelines.

Options

Multiplex capability

Single drive units with vertically installed motor are space-saving. Alternatively, multiple drive units with identical or different output can be combined for pulsation reduction or recipe metering.

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Diverse connection geometries

Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

Integration into process control systems

The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

Diagnostic connection

Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.

Heating and cooling jacket

With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.

Intellidrive technology

Using the highly-dynamic servomotor, you can adjust the stroke of the pump to the requirements of your system and your process.

Special design materials

If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.

Sanitary & hygienic Design

LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.

References

  • Metering of liquid CO2 (blowing agent)

    Metering of liquid CO2 (blowing agent)

    Metering of liquid CO2 (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials the metering of liquid CO2 (blowing agent) is required

    LEWA’s scope of delivery: Skid

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDE3 / M200, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Carbon dioxide414100
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents;
    Expanded foam, Extrusion
  • CO2 Metering of liquid CO2 (blowing agent)

    CO2 Metering of liquid CO2 (blowing agent)

    CO2 Metering of liquid CO2 (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials the metering of liquid CO2 (blowing agent) is required

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDB1 / M200, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Carbon dioxide3004.2
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials and packaging materials the metering of liquid butane (blowing agent) is required

    LEWA’s scope of delivery: System

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDC3 / M910S, mass flow meter, piping, filter, pressure regulator and control cabinet with LEWA smart control controller

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA smart control

    FluidPressure in barFlowrate in l/h
    Butane34030
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    Metering of liquid butane (blowing agent)

    The customer’s challenge: For the manufacturing of insulation materials a metering system for liquid butane (blowing agent) is required

    LEWA’s scope of delivery: System

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDE3 / M900, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Butane350100
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of butane (blowing agent)

    Metering of butane (blowing agent)

    Metering of butane (blowing agent)

    The customer’s challenge: For the manufacturing of insulating material a metering system for butane (blowing agent) is needed

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system with 1 LEWA ecoflow diaphragm pump, type LDD3 / M910, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Butane35088
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Metering of flame retardant (Irganox 1081)

    Metering of flame retardant (Irganox 1081)

    Metering of flame retardant (Irganox 1081)

    The customer’s challenge: In the production of plastics the metering of flame retardant is required

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system completely installed in heated cabinet, with 1 LEWA ecoflow diaphragm metering pump, type LDB1 / M900, strainer, valves, mass flow meter and control cabinet, with melting tank 50 l, for operating temperature of 100 °C.

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Flame retardant2014
    MarketProcess
    Synthetic Fibers - Synthetic Materials / PlasticsPVC - E-PVC
  • Metering of flame retardant

    Metering of flame retardant

    Metering of flame retardant

    The customer’s challenge: In the production of plastics flame retardant has to be metered

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system completely electrical heat traced and insulated, with 1 gear wheel pump, storage tank, strainer, valves, mass flow meter and control cabinet, for operating temperature of 80 °C

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Flame retardant13714
    MarketProcess
    Synthetic Fibers - Synthetic Materials / PlasticsPolyester
  • Metering of dispersion of polymers

    Metering of dispersion of polymers

    Metering of dispersion of polymers

    The customer’s challenge: For the manufacturing of roofing tiles a metering system for dispersion of polymers is needed

    LEWA’s scope of delivery: Skid

    Delivery in detail: 1 Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDE1 / M900, reduced pulsation at 2 different pressures, 2 pressure retaining valves, control unit

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Polymer80300
    MarketProcess
    Synthetic Fibers - Synthetic Materials / PlasticsDispersions
  • Metering of chlorofluorocarbon (CFC) (blowing agent)

    Metering of chlorofluorocarbon (CFC) (blowing agent)

    Metering of chlorofluorocarbon (CFC) (blowing agent)

    The customer’s challenge: For the manufacturing of insulating packing material the metering of chlorofluorocarbon (CFC), freon 152 a as blowing agent is required

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system with 1 LEWA ecoflow diaphragm metering pump, type LDC3 / M910, cooling unit, mass flow meter, DCS with control according to set point setting

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump
    LEWA ecofoam

    FluidPressure in barFlowrate in l/h
    Foaming agent30030
    MarketProcess
    Synthetic Fibers -
    Synthetic Materials / Plastics
    Blowing agents,
    Expanded foam, Extrusion
  • Injection of scale inhibitor

    Injection of scale inhibitor

    Injection of scale inhibitor

    The customer’s challenge: For the injection of scale inhibitor a compact injection package for offshore service is required

    LEWA’s scope of delivery: Package

    Delivery in detail: Compact LEWA Chemical Injection pump skid with LEWA ecoflow diaphragm metering pump, type LDB and interconnecting tubing

    LEWA main product/s:
    LEWA Chemical Injection Package (CIP)
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Scale inhibitor606
    MarketProcess
    Offshore / Oil & GasOil production, Offshore
  • Metering of antistatic agent

    Metering of antistatic agent

    Metering of antistatic agent

    The customer’s challenge: In a refinery process additives have to be reliably metered

    LEWA’s scope of delivery: System

    Delivery in detail: Custom-designed metering system completely installed in container with 2 LEWA ecoflow diaphragm metering pumps, type LDB / M900, for hazardous area zone 1, including pulsation damper, strainer, valves, pressure transmitter and mass flow meter

    LEWA main product/s:
    Custom-designed metering system
    LEWA ecoflow diaphragm metering pump

    FluidPressure in barFlowrate in l/h
    Antistatic agent1450
    MarketProcess
    Petroleum Refining / RefineriesAdditive (final products i.e.fuel,wax)

Product range

With the combination of various pump heads and gear units, the LEWA ecoflow diaphragm metering pumps cover a wide performance spectrum. This allows us to provide you with a high-performance, energy-saving pump for any desired application.

Drive unit data

Type Stroke length [mm] plunger rod force [N]
LDB 15 2000
LDC 15 5000
LDD 30 7000
LDE 30 20000
LDF 55 24500
LDG 60 35000
LDH 120 60000

Performance overview

Performance overview LEWA metering pumps

Installation dimensions

Save space and weight through multiple arrangement of pumps or arrangement in the compact boxer design. Meter multiple liquids at the same time with various pump heads.

Installation dimensions

Type L [mm] B [mm] ΔB [mm] H [mm]
LDB 400 400 185 260
LDC 450 500 220 320
LDD 700 750 280 610
LDE 800 900 350 690
LDF 1130 900 430 940
LDG 1300 1300 490 1000
LDH 2100 1800 717 1500

Installation dimensions

Assembly dimensions LEWA ecoflow

Pump head variants

We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.

Pump head M500

Universal diaphragm pump head with PTFE sandwich diaphragm for high flow rates. Proven, durable, reliable and with diaphragm position control.

Type M500
Pressure 350 bar
Flow rate 19 m³/h
Temperature -50/+150 °C
Viscosity 100.000 mPa∙s
Operational capability Can be installed on all ecoflow diaphragm metering pumps ≥ LDE.
LEWA pump head M500
LEWA pump head M500

Pump head M900

State of the art universal diaphragm pump head with PTFE sandwich diaphragm for maximum operational reliability The patented DPS technology also enables a suction lift cabability that is globally unique in the field of hydraulically actuated diaphragm pumps. Can be installed on all ecoflow pumps.

Type M900
Pressure 500 bar
Flow rate 6 m³/h
Temperature -20/+150 °C
Viscosity 100.000 mPa∙s
Operational capability Can be installed on all ecoflow diaphragm metering pumps.
LEWA pump head M900
LEWA pump head M900

Pump head M800

Universal diaphragm pump head with PTFE sandwich diaphragm for extreme pressures. The special geometry of the diaphragm clamping system enables the use of PTFE diaphragms in pressure ranges up to 1000 bar and thus results in a very compact shape. Very economical solution in the range of high pressures, especially in comparison to pump heads with metal diaphragms.

Type M800
Pressure 1.000 bar
Flow rate 1,1 m³/h
Temperature -10/+60 °C
Viscosity 100.000 mPa∙s
Operational capability Can be installed on all ecoflow process diaphragm pumps ≥ LDF.
LEWA pump head M800
LEWA pump head M800

Pump head M200/M400

Proven pump head with metal diaphragm for extreme pressures and high temperatures. Also suitable when a high degree of permeation resistance is required. The diaphragm is working between two contour plates, limiting the deflection of the diaphragm and providing an extreme level of operational reliability. The diaphragm monitoring system offers a plus for safety by immediately displaying the damage of a diaphragm layer.

Type M200/M400
Pressure 1.200 bar
Flow rate 1,1 m³/h (M200) 0,8 m³/h (M400)
Temperature -40/+200 °C
Viscosity 500 mPa∙s
Operational capability M200 can be installed on all ecoflow diaphragm metering pumps ≤ LDE, M400 can be installed on all ecoflow process diaphragm pumps ≥ LDF.
LEWA pump head M200, M400
LEWA pump head M200-M400

Special pump heads in remote head design

Some tasks in process engineering include the metering or circulation of media with critical properties like high temperature and high abrasivity. These critical conditions frequently need to be kept away from the displacer system of the metering pump, either to protect the system or its operating personnel. A normal metering pump is not suitable for such tasks due to its compact design.

Type MR / MV / KV
Pressure 500 bar
Flow rate 19 m³/h
Temperature -70/+400 °C
Viscosity 100.000 mPa∙s
Operational capability Remote pump heads can be installed on all LEWA ecoflow metering and process pumps and on all LEWA triplex metering and process pumps.
LEWA pump head M900
LEWA diaphragm remote head cutaway

Industries

Oil & Gas
Oil & Gas

Oil & Gas

You can rely on 60 years of experience in the construction of pumps, packages, skids, and systems for onshore and offshore oil and gas production. Take a look at the information now!
Read more

Gas Odorization
Gas Odorization

Gas Odorization

LEWA odorizes gas: Custom units or tried-and-tested systems – we supply exactly what you need!
Read more

Refineries
Refineries

Refineries

We have been supplying pumps and systems for distillation plants for processing crude oil for 60 years. Ask our experts for more information!
Read more

Petrochemicals
Petrochemicals

Petrochemicals

LEWA provides durable pumps and metering systems for various processes in the petrochemical industry. Ask our experts for more information!
Read more

Chemicals
Chemicals

Chemicals

LEWA supplies you with individual chemical pumps and customized system solutions for various areas of application in the chemical industry.
Read more

Plastics processing
Plastics processing

Plastics processing

LEWA supports you in plastics processing with custom-built plants and systems. Ask our experts for more information!
Read more

Cleaners & Detergents
Cleaners & Detergents

Cleaners & Detergents

We offer reliable, formula-controlled systems for the production of cleaners and detergents. Ask the LEWA experts for more information now!
Read more

Personal Care
Personal Care

Personal Care

LEWA is your reliable partner in the production of personal care products. Our systems meet the strictest quality and hygiene requirements. Take a look at the information now!
Read more

Pharmaceutical, Life Sciences & Biotech Industries
Pharmaceutical, Life Sciences & Biotech Industries

Pharmaceutical, Life Sciences & Biotech Industries

LEWA supplies pumps and systems for the pharmaceutical, life sciences, and biotech industries that comply with all hygienic requirements. We're happy to help you with advice!
Read more

Food & Beverage Industry
Food & Beverage Industry

Food & Beverage Industry

Use LEWA pumps and system solutions for your homogenization processes in the food and beverage industry. Ask our experts for more information!
Read more

Energy Utilities
Energy Utilities

Energy Utilities

We supply pumps and systems for power plants and power suppliers. Find out more about LEWA system solutions for the energy utility industry.
Read more

Other Industries
Other Industries

Other Industries

As specialists in fluid handling, we of course also have experience in many other industries. Simply contact our consultants to find out more!
Read more

Applications

Downloads

Contact person

Find the right product series by using the navigator.

Pump-Navigator

Don't miss any news. Subscribe to our newsletter.

Register now
