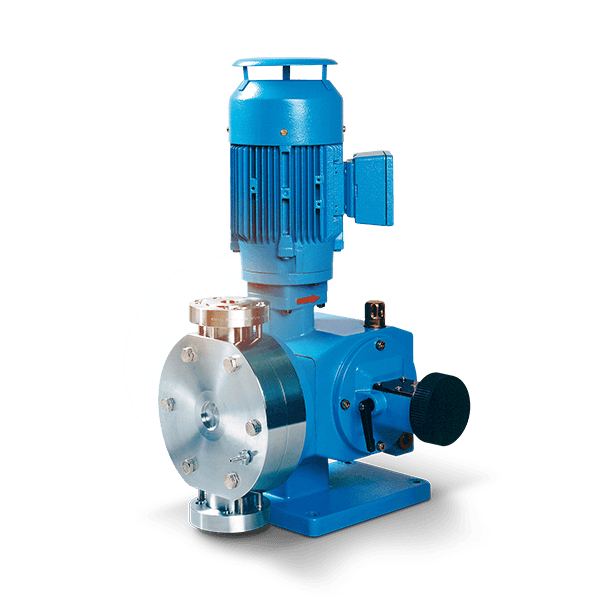

LEWA ecodos diaphragm metering pump

LEWA ecodos®
Mechanical diaphragm metering pump

LEWA ecodos is a safe, reliable and efficient diaphragm metering pump with mechanical diaphragm actuation that provides many options. It is suitable for virtually all metering and pumping tasks in the low-pressure range. Its multiplexing function enables the use of additional applications such as low-pulsation pumping, recipe metering and mixing tasks.

The ecodos implements a flow rate of 16 to 1460 l/h per pump head and a maximum discharge pressure of 20 bar.

LEWA ecodos®

The optimum solution in the low-pressure range.

Many metering tasks take place in the low-pressure range. In principle, high-pressure pumps such as the LEWA ecoflow can also be used here, though it is usually not efficient to do so.

Another important reason to use mechanically actuated metering pumps is that they protect the pumping fluid from contamination because no hydraulic oil is used in the pump. Many customers prefer mechanically actuated diaphragm pumps, especially for pharmaceutical applications and fluids that react with hydraulic oil.

For this reason, LEWA offers the ecodos series as an efficient, safe solution for pumping fluid in the low-pressure range.

LEWA ecodos diaphragm metering pump

Good reasons for a LEWA ecodos®

The LEWA ecodos is a mechanically actuated diaphragm metering pump with a monitored, 4-layer sandwich diaphragm for low pressures, which has numerous advantages over comparable pumps.

Pumps with high metering accuracy

Exact metering setting

Even in low-pressure conditions, the ecodos diaphragm pump has a precise flow rate adjustment of ± 1%. You can achieve an exact, extensive adjustment range of up to 1:50 thanks to the option of adjusting the pump using the stroke length and/or rotational speed.

Pumps with high metering accuracy

Exact metering setting

Even in low-pressure conditions, the ecodos diaphragm pump has a precise flow rate adjustment of ± 1%. You can achieve an exact, extensive adjustment range of up to 1:50 thanks to the option of adjusting the pump using the stroke length and/or rotational speed.

Various sizes and equipment

Adjust the LEWA ecodos precisely to meet your requirements: With 6 output ratings, the material variants 316/316L, PVC, PVDF and PTFE and adapted accessories, the diaphragm metering pump is suitable for virtually any pumping task in the low-pressure range.

Different pump types with specific equipment
Different pump types with specific equipment

Various sizes and equipment

Adjust the LEWA ecodos precisely to meet your requirements: With 6 output ratings, the material variants 316/316L, PVC, PVDF and PTFE and adapted accessories, the diaphragm metering pump is suitable for virtually any pumping task in the low-pressure range.

Integrated control rule systems

Integration into open and closed-loop control systems

Simply integrate the LEWA ecodos into the existing production system: Control the output on the motor side using a frequency converter or with an automatic stroke adjustment. We are happy to advise you to ensure that your pumps run at maximum efficiency.

Integrated control rule systems

Integration into open and closed-loop control systems

Simply integrate the LEWA ecodos into the existing production system: Control the output on the motor side using a frequency converter or with an automatic stroke adjustment. We are happy to advise you to ensure that your pumps run at maximum efficiency.

Hermetically sealed

Diaphragm pumps work without dynamic seals in the process fluid area. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.

High level of production reliability

Even if a diaphragm is damaged, continued operation is possible. Therefore, you have sufficient response time for maintenance purposes. This results in a high level of production reliability.

PTFE sandwich diaphragm

The 4-layer PTFE sandwich diaphragm is not only extremely stable and durable. It is also monitored continuously during operation using the patented DPS diaphragm monitoring system.

Options

Multiplex capability

Single drive units with vertically installed motor are space-saving. Alternatively, multiple drive units with identical or different output can be combined for pulsation reduction or recipe metering.

Explosion-proof design

We supply pumps, equipment and systems on request in explosion-proof design for operation up to EX zone 1 . Thus, we guarantee maximum security.

Integration into process control systems

The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

Exactly customized accessories

We pay attention to all the details: All electrical and electronic accessories for your diaphragm metering pump are perfectly tailored to our individual product - from the contact transmitter to the frequency inverter.

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Diverse connection geometries

Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

Sanitary & hygienic design

LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.

Complete documentation

In the process of documentation, we consider your requirements and provide inspection records, print samples, diagrams of output characteristics and registration papers on request.

Control and regulation units

With functionally tested controlling and regulating units for frequently occurring standard tasks of diaphragm metering pumps - such as batch metering - your process becomes faster and easier.

Performance spectrum

The LEWA ecodos diaphragm metering pump is available in various sizes, depending on the application. This pump implements flow rates of 16 to 1460 l/h.

Pump type Max. flowrate
at 50 Hz [l/h]

Permissible pressure
for stainless steel [bar]
Permissible pressure
for plastics [bar]
Permissible temperature [°C]
        VA PVC-H PVDF
LEB 16 20 12 -10/+80 0/+60 -10/+80
LEC 52 10 10 -10/+80 0/+60 -10/+80
LED 170 10 10 -10/+80 0/+60 -10/+80
LEE 336 7,5 7,5 -10/+80 0/+60 -10/+80
LEF 520 7,5 7,5 -10/+80 0/+60 -10/+80
LEG 1460 5 5 -10/+80 0/+60 -10/+80

Installation dimensions

Save space and weight through multiplex arrangement of pumps. Meter multiple liquids at the same time with various pump heads.

Dimensions

Type L [mm] W [mm] ΔW [mm] H [mm]
LEB/LEC 360 220 85 480
LED/LEE 425 220 120 570
LEF 595 270 175 660
LEG¹) 500 400 - 800
LEG²) 500 900 250 450

1) Vertical motor installation

2) Horizontal motor installation

Industries

Refineries

We have been supplying pumps and systems for distillation plants for processing crude oil for 60 years. Ask our experts for more information!

Petrochemicals

LEWA provides durable pumps and metering systems for various processes in the petrochemical industry. Ask our experts for more information!

Chemicals

LEWA supplies you with individual chemical pumps and customized system solutions for various areas of application in the chemical industry.

Plastics processing

LEWA supports you in plastics processing with custom-built plants and systems. Ask our experts for more information!

Cleaners & Detergents

We offer reliable, formula-controlled systems for the production of cleaners and detergents. Ask the LEWA experts for more information now!

Personal care

LEWA is your reliable partner in the production of personal care products. Our systems meet the strictest quality and hygiene requirements. Ask us for more information!

Pharma, Life Science & Biotech

LEWA supplies pumps and systems for the pharmaceutical, life sciences, and biotech industries that comply with all hygienic requirements. We're happy to help you!

Food & Beverage

Use LEWA pumps and system solutions for your homogenization processes in the food and beverage industry. Ask our experts for more information!

Energy Utilities

We supply pumps and systems for power plants and power suppliers. Find out more about LEWA system solutions for the energy utility industry.

Other Industries

As specialists in fluid handling, we of course also have experience in many other industries. Simply contact our consultants to find out more!

Applications

Sulfuric acid injection in copper heap leaching

Sulfuric acid injection in copper heap leaching

LEWA process pumps are used to reinject sulfuric acid at 98% into the main pipelines that go to the heap leach sprinklers.

Extracting omega-3 fatty acids using supercritical CO2

Omega 3 fatty acids

LEWA triplex diaphragm process pumps are ideal for continuous supercritical processes. Contact our experts for any query!

Dilution of emulsifiers

Emulsifyer dilution (Mayonaise)

LEWA ensures accuracy and compliance with safety standards in all processes, contact us for more information!

Amine treatment

Amine treatment

LEWA provides industrial pumps and systems for amine treatment in power plants. Ask our experts for more information!

Fabric softeners

Production of fabric softener

Find out more about our plants and systems for fabric softener production. Our experts are happy to talk to you about your custom solution!

Caustic soda production

Caustic dilution

Find out about LEWA industrial pumps and custom plants for producing and diluting different bases like caustic soda. Ask our experts for more information!

Wet oxidation of waste water

Waste water oxidation

For wet oxidation and other industrial metering processes, we recommend our tried-and-tested LEWA diaphragm pumps. Ask our experts for more information!

Extraction with supercritical fluids

Metering of Supercritical fluids for example in the coffee production

LEWA provides industrial pumps and systems for processes with supercritical fluids in pharmaceutical, food and beverage industries.

Production of edible oil

Edible oil production in the Food Industry

LEWA diaphragm metering pumps are used for the production of edible oil. We are happy to assist with your individual production process.

Production of biodiesel

Biofuel production

LEWA provides industrial metering systems for producing biodiesel and other biofuels. Consult us!

Dilution of surfactants

Production of detergents

Dilution of surfactants such as sodium lauryl ether sulfate (SLES) with LEWA industrial pumps during production of detergents.

Metering of silane

Silane metering

LEWA systems meter any silane type reliably, precisely as well as in constant consistency and purity, regardless of chemical or physical attributes or process requirements.

Production of gelatine

Gelatine production for sweets

In the production of gelatin and in the fabrication of gelatin products, LEWA pumps and systems are used. We would be happy to give you more information!

Filtration with diatomite

Filtration with diatomite in the production of beverages

When beer, wine and fruit juices are filtered, the LEWA ecodos sanitary/hygienic pump is used, which is designed for handling diatomite suspensions.

Adding antistatic agents to improve the conductivity of fuel

Adding anstatic agents in fuel production applications

Antistatic additives or antistatic agents prevent the electrostatic charging of fuels which occurs due to the friction in the pipelines during transport. Use LEWA metering systems for this application!

Adjustment of cleaning agent concentration for electronic components

Cleaning of circuit boards

LEWA metering systems adjust concentrations of cleaning agents for the immersion cleaning of electronic components. Read more here!
