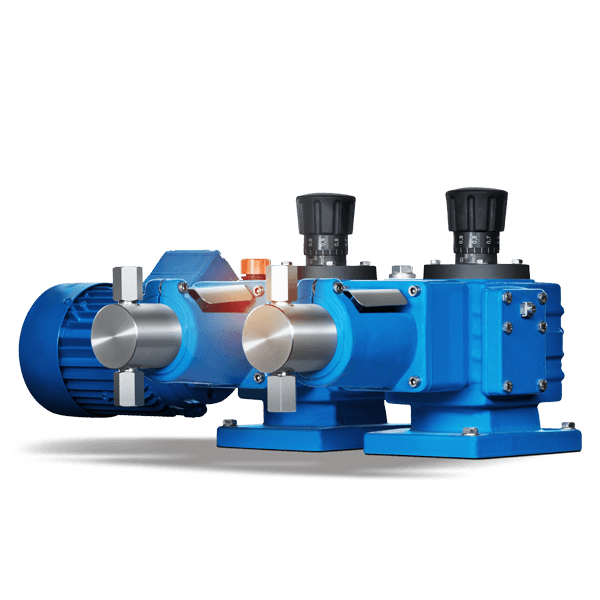

LEWA ecoflow packed plunger pump

LEWA ecoflow®
packed plunger metering pump

Its sophisticated modular system makes the LEWA ecoflow packed plunger metering pump the cost-efficient option for pumping fluids.

For the LEWA ecoflow packed plunger metering pump, the pumping fluid is displaced directly by the plunger. This means plunger and plunger seals come into direct contact with fluid. With this technology, we provide you a cost-effective solution for easy metering tasks with a flow rate of up to 9 m³/h per pump head and a discharge pressure up to 500 bar.

LEWA ecoflow®packed plunger metering pump

The cost-efficient alternative for simple metering tasks.

It does not always have to be expensive: In many cases, the use of complex diaphragm metering pumps is not cost-effective when pumping simple fluids. Therefore, we provide the LEWA ecoflow packed plunger metering pump as a cost-efficient alternative.

Therefore, for metering non-critical fluids, such as water or resin, it is advantageous to rely on a simple and robust pump with low acquisition and operating costs.

Despite lower costs, we of course provide you with the tried-and-tested LEWA quality: Each ecoflow packed plunger metering pump is produced in Germany, where it goes through all stages of quality assurance. Of course, we also rely on the tried-and-tested modular system with various pump heads, drive units and motors.

LEWA ecoflow packed plunger pump

Good reasons for a LEWA ecoflow® packed plunger metering pump

The LEWA ecoflow is a hydraulically actuated packed plunger metering pump that provides numerous advantages over comparable pumps.

Pumps with high suction capacity

Unique suction capability

The LEWA ecoflow packed plunger metering pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar, it not only provides a wide array of safe installation options. The operating costs for the entire system can also be lower than with comparable pumps.

Pumps with high suction capacity

Unique suction capability

The LEWA ecoflow packed plunger metering pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar, it not only provides a wide array of safe installation options. The operating costs for the entire system can also be lower than with comparable pumps.

Economical solution for simple tasks

Through the simple but robust plunger technology of the pump head, the ecoflow packed plunger metering pump is the ideal pump for easy metering tasks with non-critical fluids. In addition, it features particularly high energy efficiency and is low maintenance.

Economic pumps and systems from LEWA
Economic pumps and systems from LEWA

Economical solution for simple tasks

Through the simple but robust plunger technology of the pump head, the ecoflow packed plunger metering pump is the ideal pump for easy metering tasks with non-critical fluids. In addition, it features particularly high energy efficiency and is low maintenance.

LEWA pumps are manufactured according to API standards

API 675‐Standard

The ecoflow series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. It includes all definitions for a diaphragm metering pump in industrial use in terms of its design, construction, performance and acceptance test.

LEWA pumps are manufactured according to API standards

API 675‐Standard

The ecoflow series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. It includes all definitions for a diaphragm metering pump in industrial use in terms of its design, construction, performance and acceptance test.

High-quality materials

All pump parts in direct content with the fluid are made from high-quality materials. Plungers, for example, are made from ceramic oxide.

Worldwide standards

When designing pumps, we adhere to globally valid standards such as VDMA 24284, 24286‐10 and FDA guidelines.

Tried-and-tested plunger seal

The LEWA ecoflow packed plunger metering pump uses the tried-and-tested LEWA plunger seals for maximum tight sealing.

Videos about LEWA ecoflow®packed plunger metering pump

Options

Multiplex capability

Single drive units with vertically installed motor are space-saving. Alternatively, multiple drive units with identical or different output can be combined for pulsation reduction or recipe metering.

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Heating and cooling jackets

With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.

Diverse connection geometries

Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

Plunger seal with flushing possibility

In order to guarantee a long-life pump and leak-free operation, our pumps have a flushable plung seal. Thus, leaks are removed easily and safely.

Diagnostic connection

Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.

Integration into process control systems

The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

Intellidrive technology

Using the highly-dynamic servomotor, you can adjust the stroke of the pump to the requirements of your system and your process.

Special design materials

If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.

Product range

With a selection of various pump heads, the LEWA ecoflow plunger metering pump covers a large performance spectrum. This allows us to provide you with a high-performance, energy-saving pump for any desired application.

Drive unit data

Type Stroke length [mm] Plunger rod force [N]
LDB 15 2000
LDC 15 5000
LDD 30 7000
LDE 30 20000

Performance overview

Technical data LEWA ecoflow diaphragm metering and process pumps

Installation dimensions

Save space and weight through multiplex arrangement of pumps or arrangement in the compact boxer design. Meter multiple liquids at the same time with various pump heads.

Type L [mm] B [mm] ΔB [mm] H [mm]
LDB 400 400 185 260
LDC 450 500 220 320
LDD 700 750 280 610
LDE 800 900 350 690

Pump head variants

We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.



Pump head K110/K111

Standard pump head with single gland for pressures up to 160 bar.

Type K110/K111
Pressure 160 bar
Flow rate 9 m³/h
Temperature -70/+400 °C
Viscosity 1.500.000 mPa∙s
Operational capability Can be installed on all ecoflow pumps ≥ LDE.
Pump head K

Pump head K210/K211

High-pressure pump head with double tensioned gland packing for pressures up to 500 bar.

Type K210/K211
Pressure 500 bar
Flow rate 9 m³/h
Temperature -70/+400 °C
Viscosity 1.500.000 mPa∙s
Operational capability Can be installed on all ecoflow pumps ≥ LDE.
Pump head K

Pump head K511

Custom design with total heating jacket for melts.

Type K511
Pressure 176 bar
Flow rate 1,5 m³/h
Temperature -20/+150 °C
Viscosity 100.000 mPa∙s

Special pump heads in remote head design

Some tasks in process engineering include the metering or circulation of media with critical properties like high temperature and high abrasivity. These critical conditions frequently need to be kept away from the displacer system of the metering pump, either to protect the system or its operating personnel. A normal metering pump is not suitable for such tasks due to its compact design.

Type MR / MV / KV
Pressure 500 bar
Flow rate 19 m³/h
Temperature -70/+400 °C
Viscosity 100.000 mPa∙s
Operational capability Remote pump heads can be installed on all LEWA ecoflow metering and process pumps and on all LEWA triplex metering and process pumps.
Pump head remote

Oil & Gas

You can rely on 60 years of experience in the construction of pumps, packages, skids, and systems for onshore and offshore oil and gas production. Take a look at the information now!

Gas Odorization

LEWA gas odorization systems: Custom units or tried-and-tested systems! We supply exactly what you need!

Refineries

We have been supplying pumps and systems for distillation plants for processing crude oil for 60 years. Ask our experts for more information!

Petrochemicals

LEWA provides durable pumps and metering systems for various processes in the petrochemical industry. Ask our experts for more information!

Chemicals

LEWA supplies you with individual chemical pumps and customized system solutions for various areas of application in the chemical industry.

Plastics processing

LEWA supports you in plastics processing with custom-built plants and systems. Ask our experts for more information!

Cleaners & Detergents

We offer reliable, formula-controlled systems for the production of cleaners and detergents. Ask the LEWA experts for more information now!

Food & Beverage

Use LEWA pumps and system solutions for your homogenization processes in the food and beverage industry. Ask our experts for more information!

Energy Utilities

We supply pumps and systems for power plants and power suppliers. Find out more about LEWA system solutions for the energy utility industry.

Other Industries

As specialists in fluid handling, we of course also have experience in many other industries. Simply contact our consultants to find out more!

Wet oxidation of waste water

Waste water oxidation

For wet oxidation and other industrial metering processes, we recommend our tried-and-tested LEWA diaphragm pumps. Ask our experts for more information!

Pharmaceuticals production

Production of pills in the Pharmaceuticals Industry

LEWA provides sanitary and hygienic industrial pumps for the production of pharmaceuticals. Ask us for more information!

Chemical metering in high-pressure cleaning systems

Chemical injection in the Oil and Gas Industry

LEWA metering pumps are used for chemical metering in industrial high-pressure cleaning systems. Ask our experts for more information!

Biofuels

Biomass to Liquid - Production of Fuels

Biofuels are produced using metering and process pumps from LEWA in the remote-head design. Learn more about these and other applications!

Flue gas cleaning by means of metering sulfur | LEWA

Flue gas cleaning for all industry

When using an electrofilter for flue gas cleaning, metering sulfur improves the filtration efficiency. LEWA has the solution!

Production of gelatine

Gelatine production for sweets

In the production of gelatin and in the fabrication of gelatin products, LEWA pumps and systems are used. We would be happy to give you more information!

High purity systems

Homogenization in Pharma processes

Pumps and high purity systems from LEWA are a tried-and-tested solution in the pharmaceutical & biotechnology industry. We are happy to assist with your individual high purity system.

Continuous metering of extremely small quantities with LEWA intellidrive

Micoflow pumps for the metering of small quantities: LEWA intellidrive

Minimum flow rates down to 1 ml/h: With LEWA intellidrive technology, we already have created solutions for many applications with very small flow rates.
