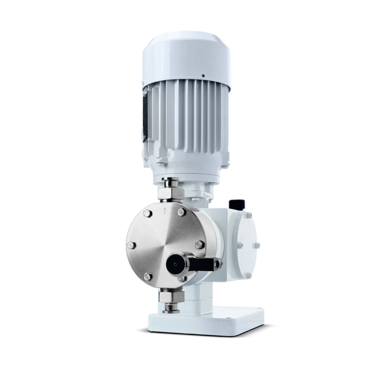

LEWA ecodos sanitary/hygienic diaphragm metering pump

LEWA ecodos®
Premier Sanitary and Hygienic Low-Pressure Diaphragm Metering Pump

The LEWA ecodos metering pump is engineered for sanitary and hygienic applications, offering a safe and efficient solution for both food and pharmaceutical production. With surfaces designed to meet stringent hygienic standards, this diaphragm metering pump is optimized for low-pressure conditions. It features a flow rate range of 16 to 1460 l/h per pump head and can handle a maximum discharge pressure of up to 20 bar. The ecodos sanitary/hygienic model is engineered to minimize dead spaces and ensures ease of cleaning, embodying the perfect blend of performance and hygiene for sensitive metering tasks.

LEWA ecodos®

For hygienic processes in the low-pressure range.

LEWA's ecodos series presents the ultimate sanitary and hygienic metering pump solution, catering to the rigorous standards of food, beverage, and pharmaceutical production. These pumps are engineered with polypropylene or stainless steel heads, ensuring a hermetic seal that protects against contamination. Their easily cleanable surfaces eliminate residues and microbes efficiently, maintaining pristine conditions.

Perfectly designed for low-pressure metering up to 20 bar, the LEWA ecodos pump excels in both aseptic and hygienic environments, delivering unmatched reliability and efficiency. The mechanical diaphragm actuation guarantees zero risk of hydraulic oil contamination, solidifying the ecodos as the sanitary choice for precision metering tasks.

LEWA ecodos sanitary/hygienic diaphragm metering pump

Top Advantages of LEWA ecodos®: Your Sanitary and Hygienic Low-Pressure Metering Pump

Experience the advanced LEWA ecodos, a mechanically actuated diaphragm metering pump, crafted in a sanitary and hygienic design. Its monitored, 4-layer sandwich diaphragm is engineered for optimal performance at low pressures. This pump offers numerous benefits over other pumps in its class, combining clean operation with precise metering capabilities.

Pumps with high metering accuracy

Exact metering setting

Even in low-pressure conditions, the ecodos diaphragm pump has a precise flow rate adjustment of ± 1%. You can achieve an exact, extensive adjustment range of up to 1:50 thanks to the option of adjusting the pump using the stroke length and/or rotational speed.

Sanitary/hygienic-compliant design

The sanitary/hygienic-compliant design fulfills the production requirements for food and pharmaceutical products: It features the smallest possible dead spaces and polished, easy-to-clean surfaces. Of course, the ecodos holds all industry-relevant certifications, such as EHEDG EL Class I.

LEWA is certified by the US Food and Drug Administration

FDA-compliant parts in direct contact with pumped fluid

All parts of the LEWA ecodos diaphragm pump in hygienic design that come into contact with fluids are FDA-compliant, corresponding to the most important requirements for hygienic processes. They are also free of animal ingredients (AOF) and comply with USP Class VI (87 & 88).

Different Variants

Various sizes and equipment

Adjust the LEWA ecodos precisely to meet your requirements: With 6 output ratings, the material variants 316/316L, stainless steel 1.4435 or PP and adapted accessories, the diaphragm metering pump is suitable for virtually any pumping task in the low-pressure range.

Surfaces polished mechanically

For complying with the strict sanitary/hygienic standards, all surfaces of the pumps are mechanically polished (1.4571: RA < 0.8 µm) or electro-polished (1.4435: RA < 0.5 µm).

Hermetically sealed

The ecodos metering diaphragm pump is mechanically driven (not hydraulically driven). This means that the pumping fluid will not become contaminated due to hydraulic oil or environmental influences.

High level of production reliability

Even if a diaphragm is damaged, continued operation is possible. Therefore, you have sufficient response time for maintenance purposes. This results in a high level of production reliability.

PTFE sandwich diaphragm

The 4-layer PTFE sandwich diaphragm is not only extremely stable and durable. It is also monitored continuously during operation using the patented DPS diaphragm monitoring system.

Complete traceability of all material products

All material products are completely documented and traceable in accordance with EN 10204 3.1. In this way, we ensure maximum transparency and safety for your production process.

Dry-run safe and maintenance-friendly

The pumps are dry-run safe and maintenance friendly. No sliding seals or packages are inserted.

Features of LEWA ecodos®: Leading Sanitary Hygienic Low-Pressure Metering Pump

Multiplex capability

Single drive units with vertically installed motor are space-saving. Alternatively, multiple drive units with identical or different output can be combined for pulsation reduction or recipe metering.

Explosion-proof design

We supply pumps, equipment and systems on request in explosion-proof design for operation up to EX zone 1 . Thus, we guarantee maximum security.

Frequency converter

The speed control of ecodos diaphragm metering pump is effected precisely by a supplied frequency converter or other variable speed drives.

Integration into process control systems

The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

Exactly customized accessories

We pay attention to all the details: All electrical and electronic accessories for your diaphragm metering pump are perfectly tailored to our individual product - from the contact transmitter to the frequency inverter.

Electrical stroke adjustment

Adjust the stroke length of your pump exactly to the specific metering task: LEWA pumps can be set fully automated by an electric stroke adjustment with integrated regulator.

Customized valves

LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

Diverse connection geometries

Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

Control and regulation units

With functionally tested controlling and regulating units for frequently occurring standard tasks of diaphragm metering pumps - such as batch metering - your process becomes faster and easier.

Product Range: Sanitary and Hygienic Low-Pressure Metering Pumps by LEWA ecodos®

The LEWA ecodos mechanical diaphragm pump, designed for sanitary and hygienic applications, offers a diverse product range with various sizes to suit any low-pressure metering need. This versatility ensures that we can supply a high-performance, energy-efficient pump tailored to your specific application requirements.

Performance overview

LEWA ecodos sanitaryMax. flow rate at 50 Hz [in l/h]
Permissible pressure for stainless steel [bar]
Permissible pressure for plastics [bar]Permissible temperature [°C]
Pump type   VAPVC-HPVDF
LEWA ecodos hygienicMax. flow rate at 50 Hz [in l/h]
Permissible pressure for stainless steel 1.4435 [bar]
Permissible pressure for (PP) [bar]Permissible temperature [°C]
Pump type   VAPP

Installation dimensions

Save space and weight through multiplex arrangement of pumps. Meter multiple liquids at the same time with various pump heads.

TypeL [mm]W [mm]ΔW [mm]H [mm]

1) Vertical motor installation

2) Horizontal motor installation

LEWA ecodos diaphragm metering pump dimensions


Pumps specially designed for the Cosmetics Industry
Cosmetics and personal care industry

Pumps and Systems for the Production of Personal Care Products

Processes with strict quality and hygiene requirements, such as GMP or the need to avoid preservatives, require the right equipment. We support you in the selection and the design of hygienic components and systems for producing personal care products. Contact our experts and let us advise you – we will work with you to develop customized metering solutions for your process, such as for manufacturing personal care products.

More Details
LEWA pumps and systems meet the requirements of the Pharmaceuticals industry
Pharma and Biotech Industry

Pumps and Systems for the Pharmaceuticals, Life Sciences and Biotechnology Industries

As the leading manufacturer of pumps and pump systems for the pharmaceutical, life sciences, and biotechnology industries, LEWA supports you during the development of complete solutions, which meet your process requirements exactly. Special expertise is required in the production of pharmaceuticals in order to ensure that legal requirements are met. Reliability when it comes to production, documentation, and validation are our top priorities.

More Details
Metering of sensible fluids in the food and beverage industry with LEWA pumps and systems
Food an beverages industry

Pumps and Systems for the Food and Beverage Industry

LEWA supports producers and plant construction companies in the food and beverage industries with pumps and systems for homogenization and dispersion, as well as for other processing operations in the food industry. We work with you to plan all the important process-related operations, such as conveying, metering, mixing, heating, and cooling so that you can process your raw product cost-effectively.

More Details
LEWA solutions are found also in other industries, for example in the Varnish- and Lacquer industry
LEWA solutions are found also in other industries

Pumps and Metering Systems for Other Industries

LEWA offers customized solutions and references for almost all industries in which processes require exact metering or the reliable conveyance of fluids. As specialists in fluid handling, we of course also have experience in areas outside of our key markets.

More Details


Process chromatography

Downstream processing

LEWA systems and gradient mixers are used in downstream processing of chemicals and biotechnology. We look forward to receiving your inquiry!

More Details
Waste water oxidation

Wet oxidation of waste water

For wet oxidation and other processes, we recommend our tried-and-tested LEWA diaphragm pumps. Ask our experts for more information!

More Details
Production of pills in the Pharmaceuticals Industry

Pharmaceuticals production

Metering pumps and metering systems must meet the following demands of pharmaceutical production.

More Details
Edible oil production in the Food Industry

Production of edible oil

LEWA diaphragm metering pumps are used for the production of edible oil. We are happy to assist with your individual production process.

More Details
Biofuel production

Production of biodiesel

LEWA provides metering systems for producing biodiesel and other biofuels. Consult us!

More Details
Pharma spray drying

Pharmaceutical spray drying

LEWA provides accurate and efficient diaphragm metering pumps for pharmaceutical spray drying. Consult us!

More Details
Metering of Flavoring agents in the food and beverage industry

Metering flavoring agents

Metering of flavoring agents by LEWA metering systems using the process of brewing alcohol-free beers as an example.

More Details

Homogenization of milk

With LEWA homogenization systems, producers of dairy products can achieve uniform particle size, moisture, and color, for example, in infant formula, and prevent the milk concentrate within it from creaming.

More Details
Gelatine production for sweets

Production of gelatine

In the production of gelatin and in the fabrication of gelatin products, LEWA pumps and systems are used. We would be happy to give you more information!

More Details
Filtration with diatomite in the production of beverages

Filtration with diatomite

When beer, wine and fruit juices are filtered, the LEWA ecodos sanitary/hygienic pump is used, which is designed for handling diatomite suspensions.

More Details
Homogenization in Pharma processes

High purity systems

Pumps and high purity systems from LEWA are a tried-and-tested solution in the pharmaceutical & biotechnology industry. We are happy to assist with your individual high purity system.

More Details
Emulsifyer dilution (Mayonaise)

Dilution of emulsifiers

With its metering systems and diaphragm pumps, LEWA offers the right solution for recipe-compliant emulsifier dilution.

More Details
Omega 3 fatty acids

Extracting omega-3 fatty acids using supercritical CO2

LEWA offers optimum pump solutions for these processes, which perform their tasks safe, permanently reliable and efficiently

More Details
Dispersing in various markets


With the diaphragm metering pumps and streamlined suspension valves, LEWA offers the suitable solution for the metering of fluids with solid particles.

More Details
Upstream Processing

Upstream Processing

LEWA pumps are used in all phases of upstream processing.

More Details

Metering pumps for sterile applications

LEWA manufactures special aseptic solutions, for the metering of sensitive fluids. Ask our pharma experts for more information!

More Details


With LEWA process diaphragm pumps, as well as the NIKKISO Non-Seal canned motor pumps we offer the optimum solution for esterification.

More Details

Solutions for flavor and color metering in the confectionery industry

LEWA creates custom-made, complete solutions that are ready to implement in your applications.

More Details


LEWA ecodos - Bomba dosadora de diafragma com acionamento mecânico. (PT)

A LEWA ecodos é uma bomba dosadora de diafragma segura, confiável e eficiente com acionamento mecânico do diafragma que oferece muitas opções.
2 MB | pdf | 18.02.2022


LEWA ecodos - die mechanisch angelenkte Dosier-Membranpumpe. (DE)

LEWA ecodos ist eine sichere, optionsreiche und wirtschaftliche Dosier-Membranpumpe mit mechanischer Membrananlenkung.
2 MB | pdf | 04.10.2023


LEWA ecodos - the mechanically actuated diaphragm metering pump. (EN)

LEWA ecodos is a safe, reliable and efficient diaphragm metering pump with mechanical diaphragm actuation that provides many options.
2 MB | pdf | 04.10.2023


LEWA ecodos - the mechanically actuated diaphragm metering pump. (USA)

LEWA ecodos is a safe, reliable and efficient diaphragm metering pump with mechanical diaphragm actuation that provides many options.
2 MB | pdf | 18.02.2022
