LEWA triplex hygienic process diaphragm pumps
The first choice for challenging applications in food and biotech sectors
LEWA triplex pumps are engineered for uncompromising product safety in high pressure applications.
It is consequently designed according to hygienic standards. Together with the gentle low-pulsation operation, hermetically sealed sandwich diaphragms and carefully selected materials according to FDA and EG1935/2004 standards it is ideal for the most sensitive media such as infant milk or pharmaceuticals.
LEWA triplex hygienic process diaphragm pumps
The first choice for challenging applications in food and biotech sectors.
Key features and benefits
Hygienic design with hermetically sealed diaphragm pump technology
The hygienic version of the LEWA triplex pump is the ideal choice for handling the most sensitive media in high pressure applications.

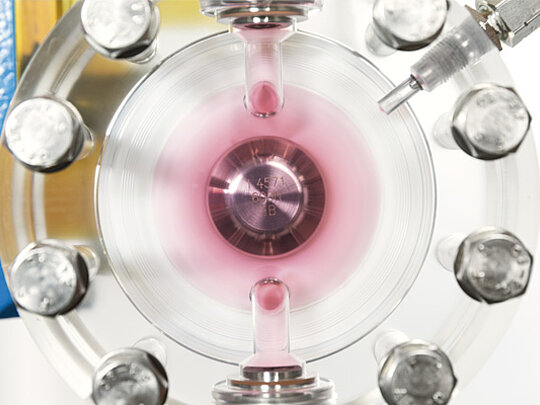

Hermetically tight pump technology
A sandwich diaphragm with continuous monitoring minimizes the risk of product contamination without using an extensive flush system. The patented LEWA DPS diaphragm protection system safeguards the diaphragm from overload and wear and ensures maximum uptime in the process.
Ideal for challenging food and beverage applications
All wetted components are manufactured from food grade material following FDA and EGV1935 standards. High quality surface finish and excellent cleanabillity makes the pump ideally suitable for the most sensitive fluids.
Ideal for high pressure applications in hygienic industries

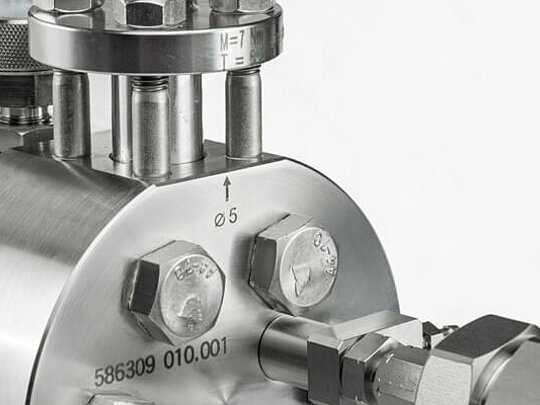

With full material traceabillity, a minimized deadleg, electropolished surface finishes and the possibillity to sterilize the pump is perfectly capable of handling even the most critical media with simplified sanitation routines.
High energy efficiency and low lifecycle costs
Optimized hydraulics and durable components reduce energy use and maintenance effort, delivering efficient operation and lower lifecycle costs in hygienic processes.

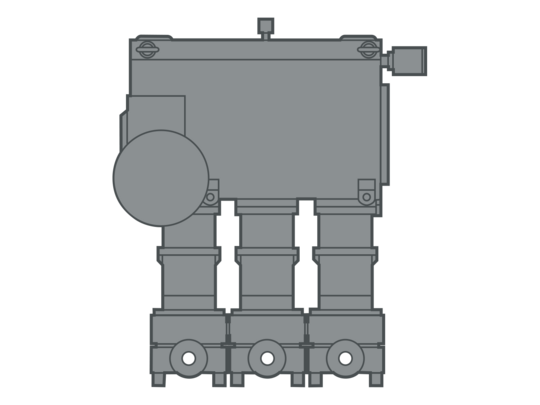

Compact footprint for easy integration into hygienic plants
Its small, space‑saving design fits seamlessly into hygienic production lines, simplifying system layout and enabling flexible integration in food, pharma and beverage plants.
Tailor made solutions — optimized for your process
LEWA is highly experienced in meeting complex requirements. Whether it is a special material or a fully engineered pump system, we deliver solutions that meet your expectations.
Gentle handling of sensitive or shear critical media
Smooth, low‑pulsation flow protects delicate formulations, maintaining product quality and preventing damage to sensitive or shear‑critical media in hygienic processes.
Easily cleanable
Due to consequent hygienic design the triplex pump is an easy-to-clean high pressure pump. That makes it the ideal choice for critical applications.
Options
Application‑specific valves
LEWA offers a wide range of specialized valve designs, including versions for suspensions and low‑deadleg valves tailored to the strict requirements of food and pharmaceutical processing.
CIP and SIP capability
The pump is available with CIP and SIP capability, enabling efficient cleaning and sterilization directly within the system.
Connection geometries
A broad selection of hygienic connection geometries is available for food‑processing applications as well as customer‑specific sanitary fittings for high pressure applications. Customized configurations can be provided to meet strict food‑industry hygiene requirements.
Special materials
Materials such as Hastelloy, duplex stainless steel, titanium, or engineered plastics are available upon customer request of course with full traceabillity.
Technical data
Performance overview of LEWA triplex pumps for hygienic applications
LEWA triplex process pumps in hygienic design deliver a wide performance range for demanding applications. Their precise, energy‑efficient operation ensures stable processes, consistent product quality, and reliable safety—tailored to your food and beverage production needs.
Performance Overview
Pump head M900
State of the art universal diaphragm pump head with PTFE sandwich diaphragm for maximum operational safety. Robust and reliable with unmatched standard of protection against difficult start up, faulty operation and upset conditions. The patented DPS technology also enables a suction lift capability that is globally unique in the field of hydraulically actuated diaphragm pumps.
| Type | M900 |
| Pressure | 500 bar |
| Flow rate | 6 m³/h |
| Temperature | -20/+150 °C |
| Viscosity | 100.000 mPa∙s |
Applications
Extraction with supercritical fluids
Processes with supercritical fluids in pharmaceutical, food and beverage industries. Ask our experts for more information!
More Details
Homogenization of milk
With LEWA homogenization systems, producers of dairy products can achieve uniform particle size, moisture, and color, for example, in infant formula, and prevent the milk concentrate within it from creaming.
More Details
Production of gelatine
In the production of gelatin and in the fabrication of gelatin products, LEWA pumps and systems are used. We would be happy to give you more information!
More Details
Dilution of emulsifiers
With its metering systems and diaphragm pumps, LEWA offers the right solution for recipe-compliant emulsifier dilution.
More Details
Extracting omega-3 fatty acids using supercritical CO2
LEWA offers optimum pump solutions for these processes, which perform their tasks safe, permanently reliable and efficiently
More Details
Solutions for flavor and color metering in the confectionery industry
LEWA creates custom-made, complete solutions that are ready to implement in your applications.
More DetailsIndustries
Pumps and Systems for the Pharmaceuticals, Life Sciences and Biotechnology Industries
As the leading manufacturer of pumps and pump systems for the pharmaceutical, life sciences, and biotechnology industries, LEWA supports you during the development of complete solutions, which meet your process requirements exactly. Special expertise is required in the production of pharmaceuticals in order to ensure that legal requirements are met. Reliability when it comes to production, documentation, and validation are our top priorities.
More Details
Pumps and Systems for the Food and Beverage Industry
LEWA supports producers and plant construction companies in the food and beverage industries with pumps and systems for homogenization and dispersion, as well as for other processing operations in the food industry. We work with you to plan all the important process-related operations, such as conveying, metering, mixing, heating, and cooling so that you can process your raw product cost-effectively.
More Details
