LEWA triplex process pump

LEWA triplex® Compact Process Pumps for High-Pressure Applications

LEWA triplex pumps are robust process diaphragm pumps featuring the patented LEWA DPS diaphragm protection system. Ideal for high-pressure processes across industries and diverse fluid types. Its compact monoblock design makes it perfect for limited installation spaces.

LEWA triplex pumps deliver flow rates of up to 180 m³/h and discharge pressures of up to 1200 bar.

LEWA triplex®

Compact, rugged, reliable.

In high-pressure applications across industries like oil and gas, chemical, food, and energy, the LEWA triplex diaphragm process pump stands out.

Featuring proven patented LEWA diaphragm technology, it ensures secure, reliable operation and boasts the world’s most compact design for a process pump. With benefits including long service life, minimal life cycle costs, and high energy efficiency, it's a top choice.

Available in six sizes, it caters to various processes and applications, meeting diverse requirements with ease.

LEWA triplex process pump

Top Reasons to Choose LEWA Triplex® for High-Pressure Processes

The LEWA Triplex stands out as a hydraulically driven diaphragm process pump with a compact design, delivering multiple advantages over similar pumps in high-pressure processes.

Compact and space saving design of pumps and systems

Solid, compact design

The LEWA triplex features a solid, durable and long-lasting overall design resulting from a one-piece crankcase and double bearing crankshaft. The space-saving monoblock design makes the triplex the world’s most compact process pump. This also makes it ideal for applications and processes with little installation space, such as oil drilling platforms.

Pulsation reduction

Low-pulsation flow rate

The triplex series features very smooth running and a low-pulsation flow rate. The even phasing of pistons (eccentric offset) makes this possible. This means there is usually no need to install pulsation dampers in the pipeline system.

Pumps with high suction capacity

Unique suction capacity

The unique suction capacity of the LEWA triplex diaphragm process pump distinguishes it from other pumps. With an absolute suction pressure of up to 0.1 bar, it provides more than just a wide array of safe installation options. The operating costs for the entire system can also be decreased compared to other pumps.

Absulute safe start up at LEWA triplex pumps

Absolutely safe and reliable startup

Starting up the process pump is safe, reliable and easy: When not operating, a spring fixes the diaphragm in a neutral position at all times. This ensures that the diaphragm is never damaged due to incorrect positioning when starting up.

Safety manometer of a LEWA pump

Safety and reliability in extreme operating states

For us, safety and reliability come first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms—not only when excess primary pressure is present, but also when the pressure or suction line is closed.

Pumps suitable for a wide range of fluids

Suitable for virtually all fluids

The ecoflow series is suitable for almost all liquids thanks to its flexible design. Whether they are dangerous, toxic, abrasive, viscous, environmentally harmful or sensitive fluids, the user-specific configuration always gives you the correct diaphragm process pump.

Hermetically tight, leakfree diaphragm pumps

Patented sandwich diaphragm

Our patented sandwich diaphragm is not just extremely durable, it is also well-protected. The LEWA DPS diaphragm protection system and diaphragm monitoring system report any damage to the diaphragm before it tears and has a chance to contaminate the pumped fluid.

Pressure Valves

Integrated pressure relief valve

A pressure relief valve in the hydraulic part of the diaphragm pump prevents potential overload situations during operation. This valve is individually adjustable and can therefore be adapted to different operating situations.

Vertical flange motor

Our triplex pumps up to the G3R size feature an integrated reduction gear unit and a vertically attached flange motor to save space.

API 675 standard

The triplex series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. In this standard, all requirements for a displacement pump in industrial settings are defined with respect to design, construction and performance.

Low maintenance costs and a long service life

Our pumps feature extremely low maintenance costs and a long service life. If regular maintenance intervals are maintained, our diaphragm pumps can operate up to 40 years.

High energy efficiency

LEWA process pumps achieve the highest efficiency of all pump technologies. Our triplex series also combines high efficiency with low energy consumption.

Worldwide standards

We comply with globally applicable standards such as VDMA 24284 and 24286-10 when designing our pumps.


Hermetically sealed

Diaphragm pumps work without dynamic seals. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.

LEWA Smart Monitoring

With digital pumps for more efficiency, system availability and profitability of the entire production.

LEWA Smart Monitoring is a monitoring system consisting of sensors, a programmable logic controller (PLC), an industrial PC (IPC) and data analysis for new and existing pumps. The system determines characteristic values and key performance indicators. There is no intervention in process control or direct contact between the sensor system and the conveyed fluid.

With key performance indicator-based condition monitoring, you detect and monitor operating statuses proactively. You can also optimize the overall output and robustness of your pump and pipe systems. This will increase the efficiency of your entire production plant. You can access the data conveniently via your corporate network. Or you use the LEWA cloud with extended analysis and service offers.

Learn more about LEWA Smart Monitoring

    Explore LEWA Triplex® videos: High-Pressure Process Pumps in Compact Design

    Unlock Versatility with LEWA Triplex®: Robust Features for High-Pressure Processes

    Customized valves

    LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.

    Diverse connection geometries

    Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.

    Integration into process control systems

    The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).

    Diagnostic connection

    Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.

    Heating and cooling jacket

    With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.

    Integrated pressure relief valve

    An integrated pressure relief valve prevents potential overload situations. The valve is individually adjustable and can be adapted to different operating situations.

    Special design materials

    If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.

    Sanitary & hygienic Design

    LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.

    CIP and SIP capability

    Many LEWA pumps, systems and units can be cleaned (Cleaning in Place) and sterilized (Sterilization in Place). To carry this out, it is not necessary to disassemble the equipment.

    Performance Range: LEWA Triplex® Process Pumps for High-Pressure Applications

    Maximized Performance Flexibility, the LEWA Triplex diaphragm process pump boasts a versatile range of pump heads and gear units, ensuring optimal performance across diverse applications.

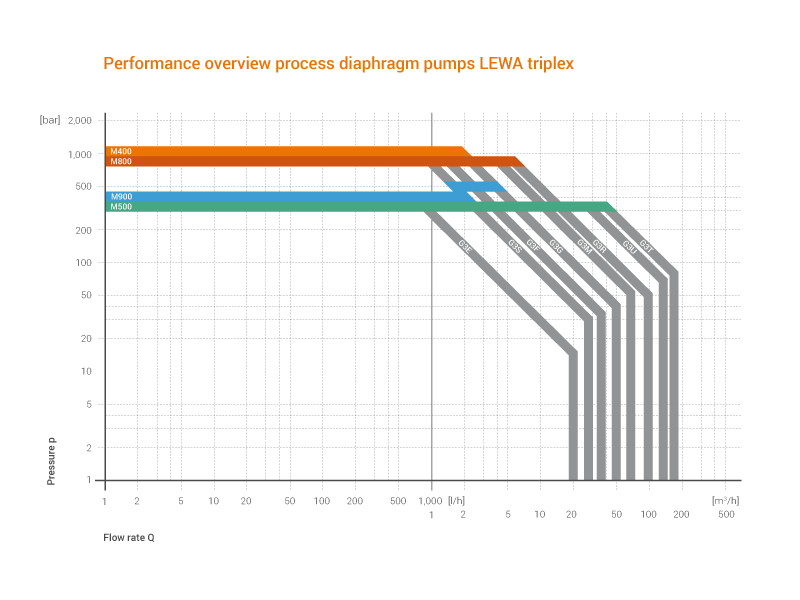

    Performance overview

    Technical data LEWA process pumps

    Installation dimensions

    The space-saving monoblock design of our triplex pumps ensures maximum efficiency in the smallest space.

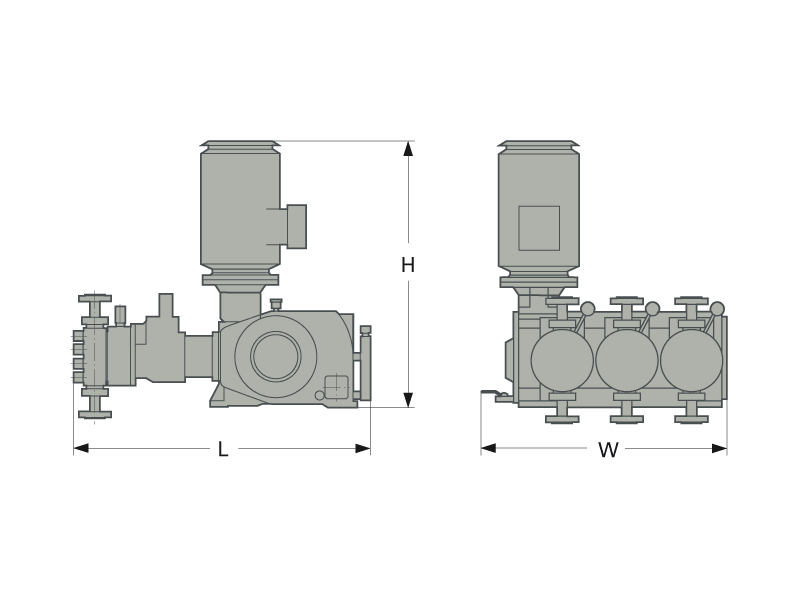

    G3S, G3F, G3G, G3M, G3R installation dimensions

    TypeL [mm]W [mm]H [mm]

    G3S, G3F, G3G, G3M, G3R installation dimensions

    LEWA G3 process pump dimensions

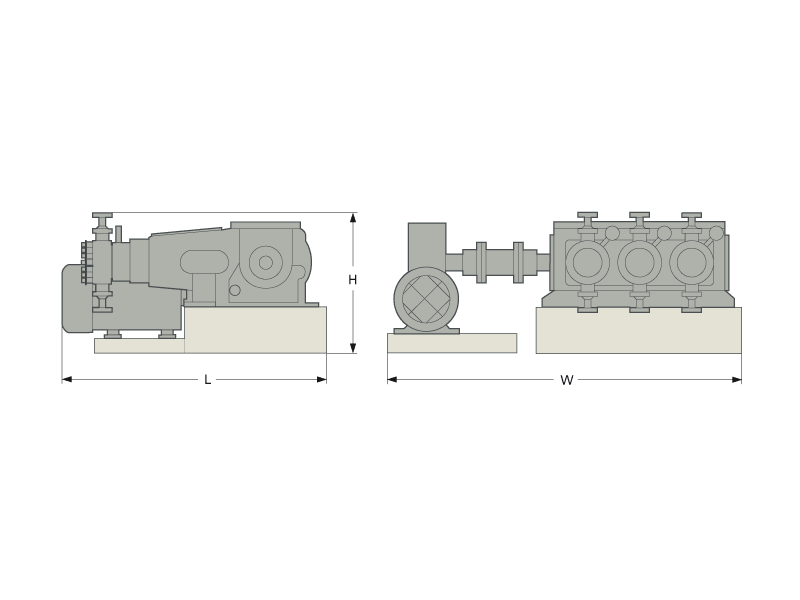

    G3U, G3T installation dimensions

    TypeL [mm]W [mm]H [mm]

    G3U, G3T installation dimensions

    LEWA G3 U process pump dimensions

    Pump head variants

    We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.

    Pump head M900

    State of the art universal diaphragm pump head with PTFE sandwich diaphragm for maximum operational safety. Robust and reliable with unmatched standard of protection against difficult start up, faulty operation and upset conditions. The patented DPS technology also enables a suction lift capability that is globally unique in the field of hydraulically actuated diaphragm pumps.

    Pressure500 bar
    Flow rate6 m³/h
    Temperature-20/+150 °C
    Viscosity100.000 mPa∙s
    Operational capabilityCan be installed on all ecoflow diaphragm metering pumps
    Pump head M9

    Pump head M900

    Pump head M800

    Universal diaphragm pump head with PTFE sandwich diaphragm for extreme pressures. The special geometry of the diaphragm clamping system enables the use of PTFE diaphragms in pressure ranges up to 1000 bar and thus results in a very compact shape. Very economical solution in the range of high pressures, especially in comparison to pump heads with metal diaphragms.

    Pressure1.000 bar
    Flow rate1,1 m³/h
    Temperature-10/+60 °C
    Viscosity100.000 mPa∙s
    Operational capabilityCan be installed on all ecoflow process diaphragm pumps ≥ LDF.
    Pump head M800

    Pump head M800

    Pump head M500

    Universal diaphragm pump head with PTFE sandwich diaphragm for high flow rates. Proven, durable, reliable and with diaphragm position control.

    Pressure350 bar
    Flow rate19 m³/h
    Temperature-50/+150 °C
    Viscosity100.000 mPa∙s
    Operational capabilityMetal pump heads (316/316L): can be installed on all ecoflow drive units ≥ LDE
    Plastic pump heads (PVC/PVDF/PTFE): can be installed on all ecoflow drive units ≤ LDE
    Pump head M500

    Pump head M500

    Pump head M400

    Proven pump head with metal diaphragm for extreme pressures and high temperatures. Also suitable when a high degree of permeation resistance is required. The diaphragm is working between two contour plates, limiting the deflection of the diaphragm and providing an extreme level of operational reliability. The diaphragm monitoring system offers a plus for safety by immediately displaying the damage of a diaphragm layer.

    Pressure1.200 bar
    Flow rate 0,8 m³/h
    Temperature-40/+200 °C
    Viscosity500 mPa∙s
    Operational capabilityCan be installed on all ecoflow process diaphragm pumps ≥ LDF.
    Pump head M200 M400

    Pump head M200 M400

    Special pump heads in remote head design

    Some tasks in process engineering include the metering or circulation of media with critical properties like high temperature and high abrasivity. These critical conditions frequently need to be kept away from the displacer system of the metering pump, either to protect the system or its operating personnel. A normal metering pump is not suitable for such tasks due to its compact design.

    TypeMR / MV / KV
    Pressure500 bar
    Flow rate19 m³/h
    Temperature-70/+400 °C
    Viscosity100.000 mPa∙s
    Operational capabilityRemote pump heads can be installed on all LEWA ecoflow metering and process pumps and on all LEWA triplex metering and process pumps.
    Pump head remote

    Pump head remote
